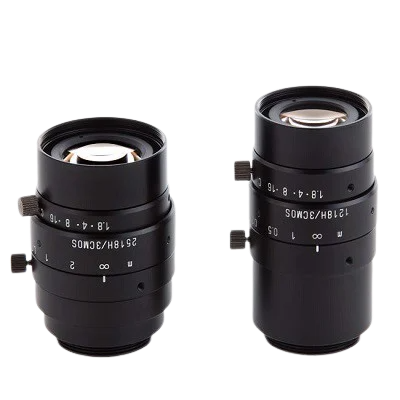

CatalogVSTECH's new product line with a special design for cameras using 3 CMOS sensors, has 3 fixed focal length options 8, 12, 25mm.
- Specially designed for cameras using 3 CMOS sensors
- Supports 1.8'' - 3.2 megaPixel and 3.45µm . sensors
- 3 focal length options 8, 12, 25mm
| VERSION | FOCAL LENGTH (MM) | FNO | MOD WITH OUT EXTENSION RING (MM) | ANGLE OF VIEW(VXH) | CAMERA MOUNT | SENSOR SIZE (MAX) |
|---|---|---|---|---|---|---|
| VS-0818H/3CMOS | 8 | 1.8～(Ｃ) | 100 | 36.6x47.3 | C-mount | 1/1.8" |
| VS-1218H/3CMOS | 12 | 1.8～(Ｃ) | 150 | 25.4x33.2 | C-mount | 1/1.8" |
| VS-2518H/3CMOS | 25 | 1.8～(Ｃ) | 200 | 12.2x16.0 | C-mount | 1/1.8" |
