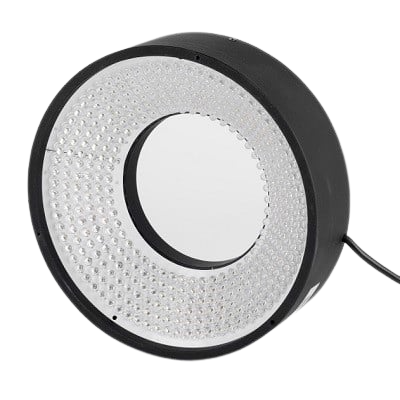

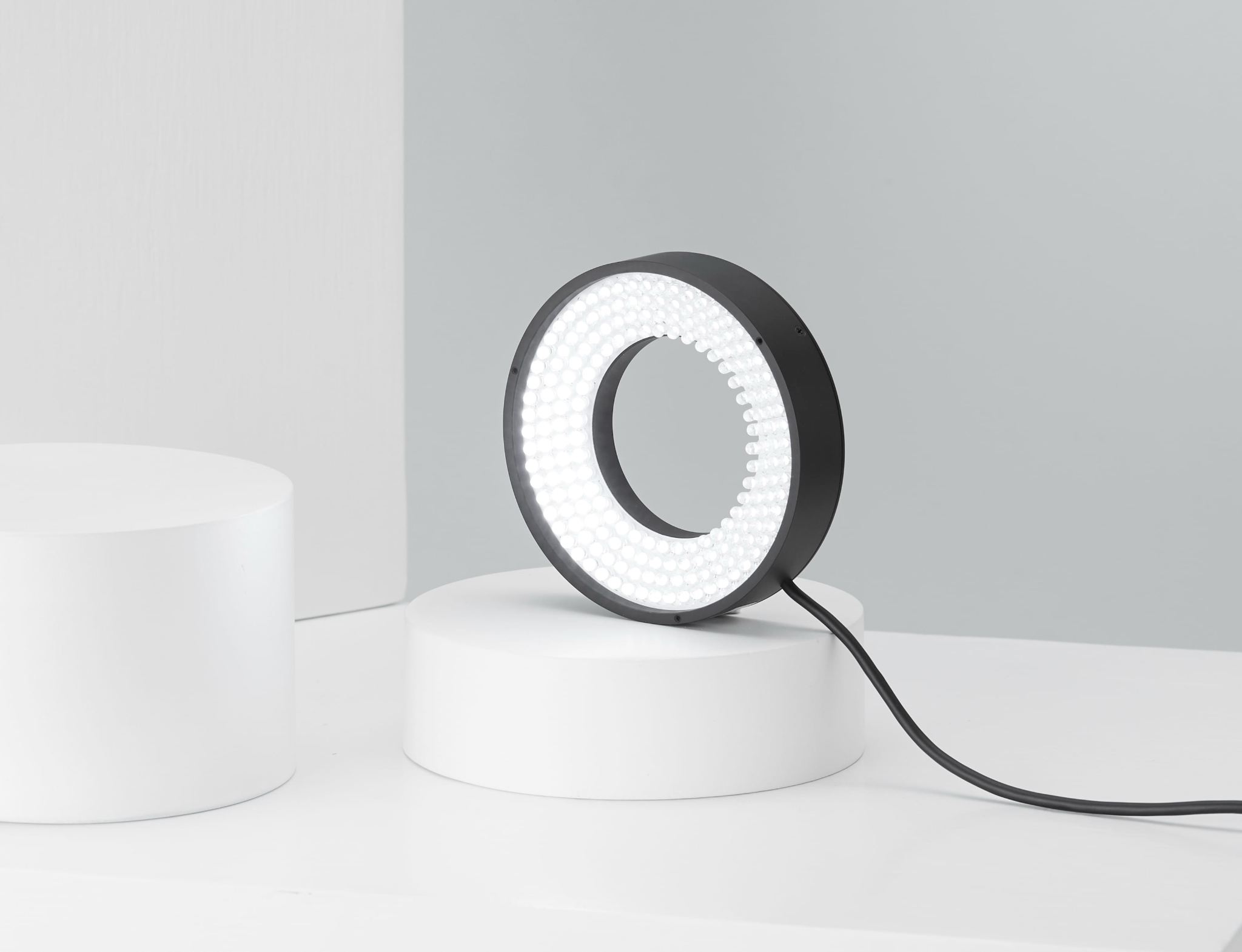

LED VISION VSTECH VL-DR SERIES
Thương hiệu: VS Technology
VS Technology's VL-DR SERIES LED series have a circular design, suitable for lighting many different applications, simple and flexible installation with the ability to adjust the lamp 360 degrees, suitable for use with devices. vision in factories and production lines requires stable lighting.
- Suitable for many different lighting applications
- Simple and flexible installation with 360 light adjustment
- Meets RoHS . standards
Các phiên bản và thông số
Version | Color | Inner ring size (mm) | Outer ring size (mm) | My maximum power consumption |
---|---|---|---|---|
VL-DR1648R | Red | 16 | 48 | 24V / 2.0 W |
VL-DR1648W | White | 16 | 48 | 24V / 3.1 W |
VL-DR1648B | Blue | 16 | 48 | 24V / 3.5 W |
VL-DR2850R | Red | 28 | 50 | 24V / 1.7 W |
VL-DR2850W | White | 28 | 50 | 24V / 2.5 W |
VL-DR2850B | Blue | 28 | 50 | 24V / 2.7 W |
VL-DR3066R | Red | 30 | 66 | 24V / 3.3 W |
VL-DR3066W | White | 30 | 66 | 24V / 5.1 W |
VL-DR3066B | Blue | 30 | 66 | 24V / 5.9 W |
VL-DR3066IR850 | IR850 | 30 | 66 | 24V / 7.2 W |
VL-DR3066UV395 | UV395 | 30 | 66 | 24V / 8.0 W |
VL-DR5090R | Red | 50 | 90 | 24V / 7.0 W |
VL-DR5090W | White | 50 | 90 | 24V / 10.0 W |
VL-DR5090B | Blue | 50 | 90 | 24V / 11.1 W |
VL-DR5090G | Gree | 50 | 90 | 24V / 11.5W |
VL-DR5090IR850 | IR850 | 50 | 90 | 24V / 15.1 W |
VL-DR5090UV365 | UV365 | 50 | 90 | 24V / 6.0 W |
VL-DR3090R | Red | 30 | 90 | 24V / 7.4 W |
VL-DR3090W | White | 30 | 90 | 24V / 10.6 W |
VL-DR3090B | Blue | 30 | 90 | 24V / 11.8 W |
VL-DR60120R | Red | 60 | 120 | 24V / 13.1 W |
VL-DR60120W | White | 60 | 120 | 24V / 17.6 W |
VL-DR60120B | Blue | 60 | 120 | 24V / 19.6 W |
SPECIFICATIONS (Type N)
Model No. | Color | Internal Ring Dia. (mm) | External Ring dia. (mm) | Power Consumption (Max.) |
---|---|---|---|---|
VL-DRN1648R | Red | 16 | 48 | 24V / 2.0W |
VL-DRN1648W | White | 16 | 48 | 24V / 4.5W |
VL-DRN1648B | Blue | 16 | 48 | 24V / 3.5W |
VL-DRN2850R | Red | 28 | 50 | 24V / 1.8W |
VL-DRN2850W | White | 28 | 50 | 24V / 3.0W |
VL-DRN2850B | Blue | 28 | 50 | 24V / 2.9W |
VL-DRN3066W | White | 30 | 66 | 24V / 7.2W |
