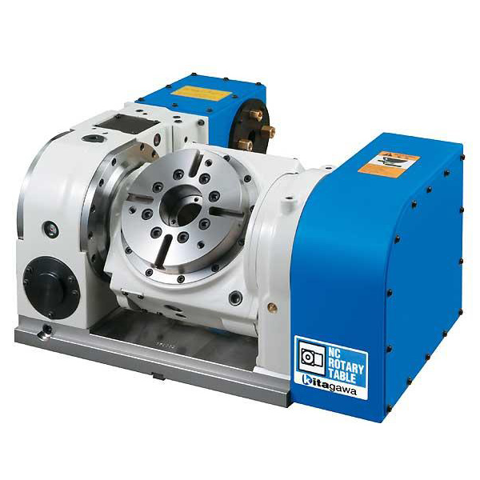

Catalog- Enables 5-axis 5-fsce machining
- Compact design
*CE correspondence
* Since 2 additional axis controlled NC rotary tables fall under the list controlled items of Export Trade Control Ordinance of Japan, Permission for Export by the Ministry of Economy, Trade and Industry is required before exporting from Japan.
| Model | TT101 | TW120 |
|---|---|---|
| Tilting Angle Range | -20°～+120° | -20°～+110° |
| Table Diameter (mm) | ø110 | ø125 |
| Centre Hole Diameter (mm) | ø50H7 | ø60H7 |
| Through Hole Diameter (mm) | ø32 | ø32 |
| Centre Height (mm) | 140 | 150 |
| Clamping Method | Pneumatic | Pneumatic |
| Clamping Torque (N･m) (at 0.5 MPa) | 180 | 120 |
| Tilting axis | 300 | 200 |
| Motor Axis Reduced Inertia (kg･m2) | 0.000082 | 0.000072 |
| Tilting axis | 0.000081 | 0.000034 |
| Servomotor (for Fanuc spec.) | αiF 1/5000-B | αiF 2/5000-B |
| Tilting axis | αiF 2/5000-B | αiF 2/5000-B |
| Total Reduction Ratio | 1/72 | 1/90 |
| Tilting axis | 1/120 | 1/180 |
| Max. Rotation Speed (min-1) | 41.6 | 33.3 |
| Tilting axis (at motor 3000 min-1) | 25 | 16.6 |
| Allowable Work Inertia (kg･m2) | 0.05 | 0.06 |
| Indexing Accuracy (sec) | 30 | 30 |
| Tilting axis | 60 | 60 |
| Repeatability (sec) | 4 | 4 |
| Mass of Product (kg) | 73 | 105 |
| Allowable Load | 35 | 35 |
| at tilted (kg) | 20 | 20 |
| Built-in Rotary Joint (as an option) | RJ32-10T05 Hydraulic/Pneumatic 3 ports | RJ32-12T08 Hydraulic/Pneumatic 3 ports |
| Model | TT140 | TT150 |
|---|---|---|
| Tilting Angle Range | -110°～+110° | -20°～+110° |
| Table Diameter (mm) | ø140 | ø150 |
| Centre Hole Diameter (mm) | ø60H7 | ø60H7 |
| Through Hole Diameter (mm) | ø32 | ø40 |
| Centre Height (mm) | 200 | 150 |
| Clamping Method | 空圧 | 空圧 |
| Clamping Torque (N･m) (at 0.5 MPa) | 280 | 350 |
| Tilting axis | 500 | 550 |
| Motor Axis Reduced Inertia (kg･m2) | 0.000269 | 0.000242 |
| Tilting axis | 0.000288 | 0.000132 |
| Servomotor (for Fanuc spec.) | αiF 2/5000-B | αiF 2/5000-B |
| Total Reduction Ratio | 1/72 | 1/72 |
| Tilting axis | 1/180 | 1/180 |
| Max. Rotation Speed (min-1 | 41.6 | 41.6 |
| Tilting axis (at motor 3000min-1) | 16.6 | 16.6 |
| Allowable Work Inertia (kg･m2) | 0.12 | 0.14 |
| Indexing Accuracy (sec) | 30 | 30 |
| Tilting axis | 60 | 60 |
| Repeatability (sec) | 4 | 4 |
| Mass of Product (kg) | 158 | 141 |
| Allowable Load | 50 | 50 |
| at tilted (kg) | 30 | 30 |
| Built-in Rotary Joint (as an option) | RJ32TT140 Hydraulic/Pneumatic 4 ports | RJ40FTT150 Hydraulic/Pneumatic 4 ports + Pneumatic exclusive 1 port |
| Model | TT182/TW182 | TT200 |
|---|---|---|
| Tilting Angle Range | -35°～+110° | -35°～+110° |
| Table Diameter (mm) | ø180 | ø200 |
| Centre Hole Diameter (mm) | ø65H7 | ø65H7 |
| Through Hole Diameter (mm) | ø40 | ø40 |
| Centre Height (mm) | 180 | 180 |
| Clamping Method | Air-hydraulic / Hydraulic | Air-hydraulic / Hydraulic |
| Clamping Torque (N･m) (at pneumatic 0.5MPa /hydraulic 3.5MPa) | 450 | 600 |
| Tilting axis | 800 | 1200 |
| Motor Axis Reduced Inertia (kg･m2) | 0.000242 | 0.000225 |
| Tilting axis | 0.000135 | 0.000125 |
| Servomotor (for Fanuc spec.) | αiF 2/5000-B | αiF 2/5000-B |
| Total Reducion Ratio | 1/90 | 1/90 |
| Tilting axis | 1/180 | 1/180 |
| Max. Rotation Speed (min-1) | 33.3 | 33.3 |
| Tilting axis (at motor 3000min-1) | 16.6 | 16.6 |
| Allowable Work Inertia (kg･m2) | 0.25 | 0.3 |
| Indexing Accuracy (sec) | 20 | 20 |
| Tilting axis | 60 | 60 |
| Repeatability (sec) | 4 | 4 |
| Mass of Product (kg) | 163 / 178 | 170 |
| Allowable Load | 60 | 60 |
| at tilted (kg) | 40 | 40 |
| Built-in Rotary Joint (as an option) | RJ40FTT182 Hydraulic/Pneumatic 4 ports +Pneumatic exclusive 1 port | RJ40FTT200 Hydraulic/Pneumatic 4 ports +Pneumatic exclusive 1 port |
| Pneumatic Outer Cylinder (as an option) | NY1312T18B | NY1312T18B |
| Hydraulic Outer Cylinder (as an option) | NY0912T18A | NY0912T18A |
