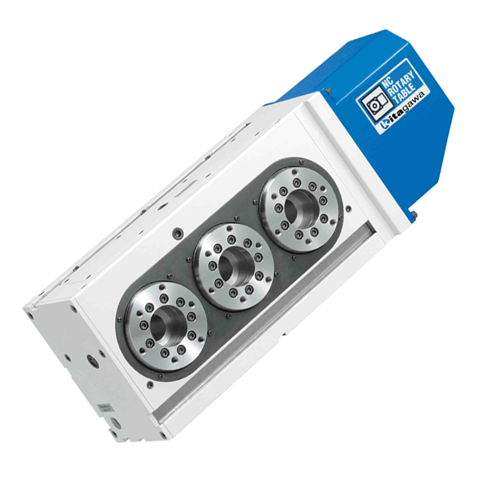

Catalog- Multi spindle range for multiple work piece machining reduces set up time and increase productivity.
- Mono-block body & compact design
- Ideal for tapping machines with high speed rotation
- Tact time reduced
- Multi work pieces machining
*CE correspondence
| Model | TM2100 | TM3100 | TM2160 | TM3160 |
|---|---|---|---|---|
| Right-handed Type | ○ | ○ | ○ | ○ |
| Left-handed Type | ○ | ○ | ○ | ○ |
| Table Diameter (mm) | ø105 | ø105 | ø165 | ø165 |
| Centre Hole Diameter (mm) | ø50H7 | ø50H7 | ø50H7 | ø50H7 |
| Through Hole Diameter (mm) | ø32 | ø32 | ø40 | ø40 |
| Centre Height (mm) | 110 | 110 | 140 | 140 |
| Clamping Method | Pneumatic | Pneumatic | Pneumatic/Air-hydraulic /Hydraulic | Pneumatic/Air-hydraulic /Hydraulic |
| Clamping Torque (N･m) | 117 | 117 | 176 | 176 |
| at air-hydraulic booster 0.45MPa /hydraulic 3.5MPa) | - | - | 400 | 400 |
| Motor Axis Reduced Inertia (kg･m2) | 0.000353 | 0.000475 | 0.000145 | 0.000188 |
| Servomotor (for Fanuc spec.) | αiF 4/5000-B | αiF 4/5000-B | αiF 4/5000-B | αiF 4/5000-B |
| Total Reduction Ratio | 1/36 | 1/36 | 1/90 | 1/90 |
| M signal spec. | 1/36 | 1/60 | 1/90 | 1/120 |
| Max. Rotation Speed (min-1) | 83.3 (at motor 3000min-1) | 69.4 (at motor 2500min-1) | 33.3 (at motor 3000min-1) | 33.3 (at motor 3000min-1) |
| M signal spec. | 83.3 (at motor 3000min-1) | 50 (at motor 3000min-1) | 33.3 (at motor 3000min-1) | 16.6 (at motor 2000min-1) |
| Allowable Work Inertia (kg･m2) | 0.054 | 0.054 | 0.51 | 0.51 |
| Indexing Accuracy (sec) | 60 | 60 | 30 | 30 |
| Repeatability (sec) | 5 | 5 | 4 | 4 |
| Mass of Product (kg) | 85 | 100 | 100 | 150 |
| Allowable Load | 60 | 60 | 160 | 160 |
| Vertical (kg) | 30 | 30 | 80 | 80 |
| Manual Tailstock (as an option) | TS2100RN | TS3100RN | TS2160RN | TS3160RN |
