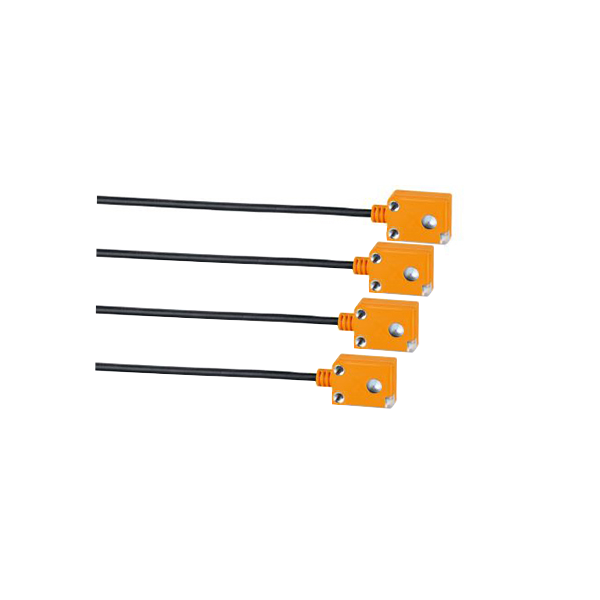

CatalogThe particularly small photoelectric O7 sensors are designed to provide reliable position detection in feeding, assembly and handling applications with limited space.
The product range includes through-beam sensors, retro-reflective sensors and diffuse reflection sensors with precise background suppression.
The visible red light simplifies installation and set-up. The small light spot and the narrow light cone enable the detection of very small objects even over long distances. Due to their fixed setting, the sensors are ready for operation immediately after installation.
A wide range of system components ensures easy and safe integration into the application.
| Product | Product designation | Transmitter / receiver | Dimensions | Range | Range referred to prismatic reflector |
|---|---|---|---|---|---|
| O7H202 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H200 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H204 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7S200 | Through-beam sensor | transmitter | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7E200 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7P200 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7E201 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7P201 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7H205 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H201 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H203 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H206 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H210 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7E202 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7P202 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7H208 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7E203 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7P203 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7H207 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H209 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H211 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H212 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7P205 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7H213 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm |
