- Stainless steel housing with high protection rating
- Simple setting of the range by potentiometer
- Diffuse reflection sensor with precise background suppression
- Range is independent of the object colour
- User-friendly communication via IO-Link

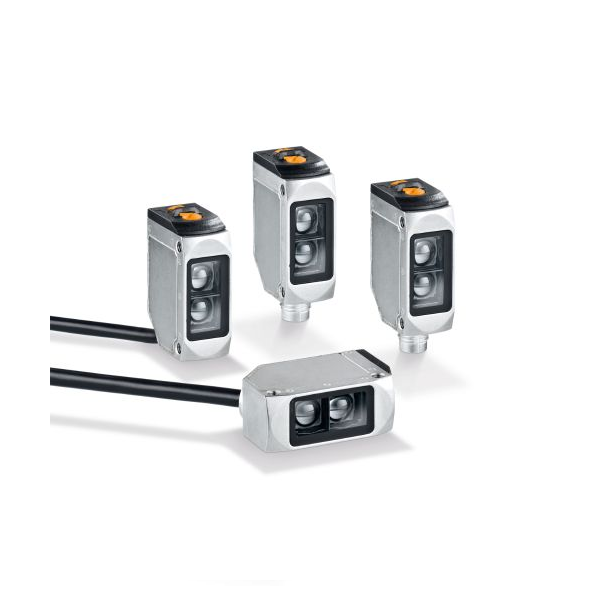

The photoelectric sensors of the O6 wetline series are designed for the food industry and offer an outstanding optical performance. The robust stainless steel housing with protection rating IP 68 / IP 69K is suited for use in harsh environments.
The potentiometers and rotary switches are fitted with a double seal. The front pane is embedded flush and made of resistant, shatterproof plastic. This allows residue-free cleaning.
The transparent black housing cover ensures that, even in bright lighting conditions, the LEDs for switching status and operation are clearly visible.
The clearly defined consistent light spot ensures precise object detection. There is no scattered light which could interfere with other photoelectric sensors in close vicinity.
Diffuse reflection sensors distinguish themselves by reliable background suppression, even in case of highly reflective backgrounds. The sensing range is independent of the type and colour of the object to be detected. A special feature is the automatic sensitivity compensation that guarantees reliable operation even in steam, smoke or highly reflective environments.
Product | Product designation | Transmitter / receiver | Dimensions | Range | Range referred to prismatic reflector |
---|---|---|---|---|---|
O6H301 | Diffuse reflection sensor | 2...200 mm | |||
O6P301 | Retro-reflective sensor | 0.05...5 | |||
O6P303 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6H302 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 2...200 mm | ||
O6H303 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 2...200 mm | ||
O6E301 | Through-beam sensor | receiver | < 10 m | ||
O6S301 | Through-beam sensor | transmitter | < 10 m | ||
O6T301 | Diffuse reflection sensor | 5...500 mm | |||
O6H300 | Diffuse reflection sensor | 2...200 mm | |||
O6H309 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 2...200 mm | ||
O6P302 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6P309 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6P300 | Retro-reflective sensor | 0.05...5 | |||
O6T309 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 5...500 mm | ||
O6S300 | Through-beam sensor | transmitter | < 10 m | ||
O6S303 | Through-beam sensor | transmitter | 34.8 x 13 x 21 mm | < 10 m | |
O6H305 | Diffuse reflection sensor | 2...200 mm | |||
O6E303 | Through-beam sensor | receiver | 34.8 x 13 x 21 mm | < 10 m | |
O6E300 | Through-beam sensor | receiver | < 10 m | ||
O6T303 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 5...500 mm | ||
O6H310 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 2...200 mm | ||
O6H304 | Diffuse reflection sensor | 2...200 mm | |||
O6T302 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 5...500 mm | ||
O6S305 | Through-beam sensor | transmitter | 34.8 x 13 x 21 mm | < 10 m | |
O6E309 | Through-beam sensor | receiver | 34.8 x 13 x 21 mm | < 10 m | |
O6S302 | Through-beam sensor | transmitter | 34.8 x 13 x 21 mm | < 10 m | |
O6T300 | Diffuse reflection sensor | 5...500 mm | |||
O6P310 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6E302 | Through-beam sensor | receiver | 34.8 x 13 x 21 mm | < 10 m | |
O6P306 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6P307 | Retro-reflective sensor | 41.3 x 13 x 21 mm | 0.05...5 | ||
O6E304 | Through-beam sensor | receiver | < 10 m | ||
O6T307 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 5...500 mm | ||
O6T306 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 5...500 mm | ||
O6T305 | Diffuse reflection sensor | 5...500 mm | |||
O6E307 | Through-beam sensor | receiver | 34.8 x 13 x 21 mm | < 10 m | |
O6E306 | Through-beam sensor | receiver | 34.8 x 13 x 21 mm | < 10 m |
