CatalogHas high strength and stiffness.
Fast, accurate workpiece clamping.

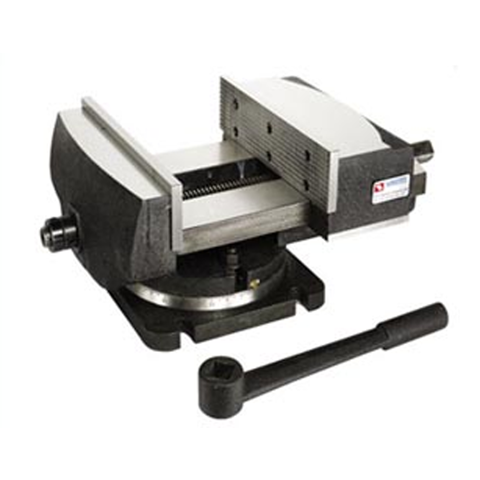

VERTEX's VSM milling machine has a very wide clamping range (290mm-505mm), large clamping force (800Kg-1200Kg) and is sturdy.
VSM vise is suitable for use on bed milling machines, for heavy duty machining and with large workpieces.
The accuracy of VSM vise is: 0.01mm
| ODER NO. | A | B | C(OPEN) | D | E | E1 | F | G | H | I | J | K | L | M | M1 | M2 | CODE NO. | |||
| VSM-12 | 304 | 72 | 290 | 126 | 604 | 560 | 18 | 240 | 161 | 198 | 260 | 272 | 25 | 123 | 135 | 265 | 800 | 84 | 67*35*23 | 1002-270 |
| VSM-16 | 405 | 96 | 415 | 145 | 763 | 738 | 20 | 292 | 200 | 241 | 336 | 336 | 25 | 135 | 143 | 248 | 1000 | 142 | 84*45*27 | 1002-271 |
| VSM-20 | 508 | 95 | 505 | 150 | 902 | 871 | 21 | 288 | 204 | 245 | 336 | 336 | 25 | 169 | 211 | 246 | 1200 | 200 | 97*56*28 | 1002-727 |
