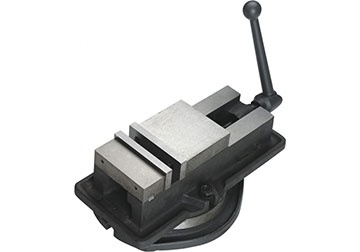

The Vertex Series VA vise is a universal mechanical vise for milling machines.
The vise is fitted with a swivel base; has the ability to rotate the angle and lock it in place; convenient for part machining with one clamp.
Some new improved models with larger clamping distance
VD-675 6″ JAW OPEN 7″1/2″
VD-690 6″ JAW OPEN 9″
VD-810 8″ JAW OPEN 10 3/4″
VA-8L 8″ JAW OPEN 10 1/4″
Series: VK (Laws)
Model | Clamp width (A) mm | Clamp height (B) mm | Clamping clearance Cmax mm | Total visor length (E) mm | d | Weight / kg) |
VA-4 | 102 | 36 | 103 | 324 | 243 | 20 |
VA-5 | 131 | 36 | 110 | 359 | 278 | 30 |
VA-6 | 152 | 46 | 142 | 422 | 328 | 42 |
VA-8 | 200 | 62 | 197 | 553 | 416 | 80 |
VD675 | 152 | 38 | 190 | 445 | 381 | 43 |
VA-8L | 203 | 60 | 266 | 510 | 330 | 80 |
Model | E | A | B | H | R | S | H1 | Weight |
VK-4 | 9 | 280 | 102 | 14 | 62 | 15 | 123 | (C)10 |
VK-5 | 9 | 355 | 131 | 16 | 85 | 15 | 148 | (C)16.6 |
VK-6 | 9 | 435 | 152 | 18 | 114 | 17 | 182 | (C)27.8 |
VK-8 | 13 | 560 | 204 | 24 | 150 | 21 | 233 | (C)56 |
Model | A | B | C | D | G | H | Weight |
VJ-400 | 110 | 37 | 185 | 522 | 168 | 94 | (C)24.8 |
VJ-500 | 130 | 48 | 245 | 580 | 192 | 114 | (C)33.4 |
VJ-600 | 154 | 54 | 305 | 695 | 200 | 131 | (C)46.1 |
