Camera Cognex In-Sight 5000
In-Sight Cameras for In-Sight VC200 Vision Controller
Kích thước | 31 mm x 31 mm x 63 mm |
Housing | ISC8402: IP40 ISC8405: IP30 |
Kết nối | ISC8402: Industrial M12 for PoE and connecting to In-Sight VC200 controller ISC8405: RJ45 for PoE and connecting to In-Sight VC200 controller |
Optics | C-Mount |

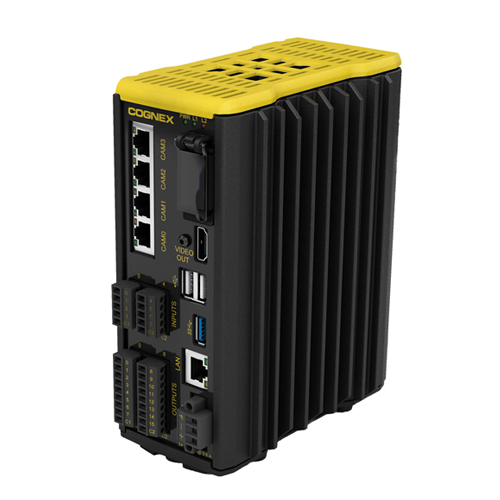

In-Sight VC200
Các thiết bị Cognex hỗ trợ | ISC8200, ISC8400, ISC8401, ISC8402 and ISC8405 | |
Job/Program Memory | 8GB non-volatile flash memory. Không giới hạn dung lượng thông qua kết nối mạng. | |
Bộ nhớ xử lí hình ảnh | 2GB SDRAM | |
Hệ thống làm mát | Thiết kế không quạt tản nhiệt. | |
Đầu vào | 8 optically isolated discrete inputs | |
Đầu ra | 16 optically isolated discrete outputs | |
Camera Ports 1 | 4 RJ-45 dedicated Ethernet ports for connecting directly to supported In-Sight cameras, additionally supplying Power over Ethernet | |
LAN Port 2 | 1 RJ-45 Ethernet port, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Cổng kết nối chuyên dụng cho mạng diện rộng | |
USB Ports 3 | 1 host USB 3.0 port (5 Gb/sec.) and 2 host USB 2.0 ports (480 Mb/sec.) cổng kết nối dùng cho chuột, bàn phím hoặc thiết bị lưu trữ. | |
Khe cắm SD | 1 khe cắm thẻ nhớ SD dùng cho lưu hình ảnh, các tệp đang chạy và kết quả. Thẻ SD nên là USH-I or USH-II và định dạng là FAT32. | |
Cổng xuất hình ảnh | 1 cổng HDMI | |
I/O Terminal Connectors | 16–26 AWG, solid or stranded wire. Torque 0.25 Nm (2.2 in-lb) | |
24VDC Power Connector | 14–18 AWG, solid or stranded wire. Torque 0.6 Nm (5.3 in-lb) | |
Đèn LED chỉ thị | PWR LED, LED 1, LED 2 | |
Housing | Aluminum, steel sheet metal, injection-molded housing | |
Mounting | Four bottom and four backside M4 x 0.7 threaded mounting holes. The vision controller may be optionally mounted using the accessory wall mounting bracket or to a 35×15 mm DIN rail, using the accessory DIN rail mounting bracket | |
Kích thước | 178.8 mm (7.04 in) x 142.1 mm (5.59 in) x 75.1 mm (2.96 in) | |
Khối lượng | 1.45 kg (3.2 lb) | |
Dòng điện | 3.5A (maximum) | |
Điện áp | 24VDC ±10% | |
Công suất | 84W (maximum) | |
Nhiệt độ hoạt động 4 | 0 °C to 45 °C (32 °F to 113 °F) | |
Nhiệt độ bảo quản | -30 °C to 80 °C (-22 °F to 176 °F) | |
Độ ẩm cho phép | 10%–85%, non-condensing (Operating and Storage) | |
Độ cao | 2,000 m (6565 ft) | |
Chuẩn bảo vệ | IP30 | |
Shock (bảo quản và vận chuyển) | 30 G, per IEC 60068-2-7EA | |
Tuân thủ quy định | CE, FCC, KCC, TÜV SÜD NRTL, RoHS |
Notes:
- To ensure reliable communication using 1000 BaseT operation, the Ethernet cable must not exceed 100 meters.
- To ensure reliable communication using 1000 BaseT operation, the Ethernet cable must not exceed 100 meters
- Maximum USB port speeds are listed. Actual speeds are dependent on the USB device, which are typically lower.
- To ensure sufficient ventilation, the vision controller must be mounted with 50 mm of clearance above the vision controller and 50 mm of clearance on both sides. If an adjacent device also produces heat, additional space or cooling is required if air space around the vision controller exceeds 45 °C (113 °F)
