Describe:

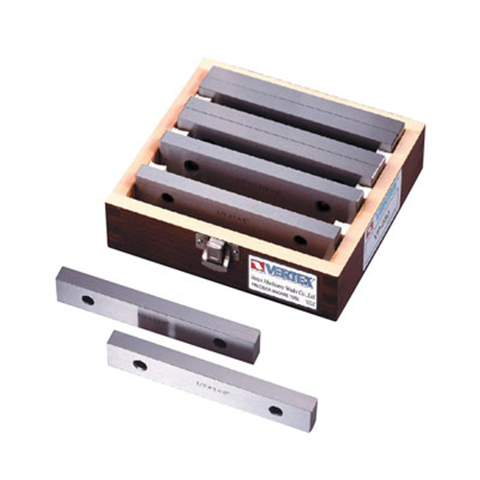

The precision spacer is used to buffer, align the workpiece, when clamping the workpiece on the milling machine vise.
– The precise buffer alignment makes the clamping process on the milling machine vise more convenient.
– Parallelism of surfaces is: ±0.005.
– Accuracy of cushions: 0.01mm.
- Made from high alloy steel. The four sides of the mattress are polished.
– Surface hardness reaches: 48 – 53 HRC.
– VP-050 precision buffer set includes 8 pieces (4 pairs).
– The size of the mattress is 13W*H*150L; H varies from 25 to 44. Please see more according to the image above.
– The entire mattress is packed in a plastic box with fixed compartments. Convenient for use and storage.
– The total weight of the VP-050 precision mattress is 4.5 Kg. Packing size: 175*150*55mm. Specifications: G.w. 4.5kgs. PACKING: 180x70x310 mm ACCURACY: 0.01mm THICKNESS 1/2″ = 13mm.
G.w. 4.5kgs.
PACKING: 180x70x310 mm
ACCURACY: 0.01mm
THICKNESS 1/2″ = 13mm
WxHxLxPcs |
13x25x150x2 |
13x31x150x2 |
13x38x150x2 |
13x44x150x2 |
