Thanh gá ZEROPOINT-ZP-021320.5

Thương hiệu: ZEROPOINT

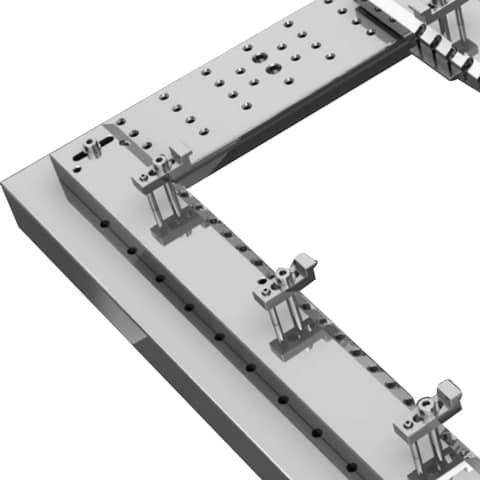

Thanh gá kẹp phôi Zeropoint cho máy cắt dây EDM

Model		Kích thước (mm)				Mô tả	Sử dụng cho máy cắt dây EDM
Tiêu chuẩn	Toàn bộ	L	L1	W	H	Bộ kẹp BEAM	Agie Charmilles	Fanuc	Makino	Mitsubishi	Seibu	Sodick
ZP-021320.5	ZP-020550SS ZP-020550DS	370	321	70	30	370 * 70 * 30 – 320.5	2050 TW-Y
ZP-021330		380	330	70	30	380 * 70 * 30 – 330				FA 10S-Y
ZP-021369		420	369	70	30	420 * 70 * 30 – 369	CUT2000-Y
ZP-021370		420	370	70	30	420 * 70 * 30 – 370			U3-Y U3HEAT-Y U32J-Y W32-Y UPV3-Y
ZP-021380		450	380	70	30	450 * 70 * 30 – 380				NA1200-Y
ZP-021395		450	395	70	30	450 * 70 * 30 – 395						SL400-Y AG400L-Y
ZP-021400		450	400	70	30	450 * 70 * 30 – 400			DUO43-Y
ZP-021418		470	418	70	30	470 * 70 * 30 – 418		DUO43-Y
ZP-021420		470	420	70	30	470 * 70 * 30 – 420	240-X 440-Y 2050TW-X
ZP-021422		470	422	70	30	470 * 70 * 30 – 422				M350S-X
ZP-021426		480	426	70	30	470 * 70 * 30 – 426		0iDP-X		M350-X M35A-X
ZP-021430		480	430	70	30	480 * 70 * 30 – 430				FA10S-X FA20S-Y
ZP-021450		500	450	70	30	500 * 70 * 30 – 450		1iB-Y
ZP-021469		520	469	70	30	520 * 70 * 30 – 469	2F-X 3F-Y CUT2000-X CUT3000-Y

ZP-021470	ZP-020550SS ZP-020550DS	520	470	70	30	520 * 70 * 30 – 470			U3-X U3HEAT-X U32J-X W32-X UPV3-X W53J-Y U53J-Y W53FB-Y UPV3-Y
ZP-021475		520	475	70	30	520 * 70 * 30 – 475						AG600-Y
ZP-021480		530	480	70	30	530 * 70 * 30 – 480	CUT3000-X	1iE-Y C-600iA-Y		NA1200-X NA2400-Y
ZP-021495	ZP-020715SS ZP-020715DS	550	495	70	30	550 * 70 * 30 – 495						SL600-Y
ZP-021500		550	500	70	30	550 * 70 * 30 – 500			DUO64-Y			AG400-X
ZP-021550				70	30	600 * 70 * 30 – 550			U6-Y DUO43-X U6HEAT-Y
ZP-021570		620	570	70	30	620 * 70 * 30 – 570					M5000S-X
ZP-021580		630	580	70	30	630 * 70 * 30 – 580				FA20S-X FA30V-Y
ZP-021600		650	600	70	30	650 * 70 * 30 – 600					M50A-X M500-X
ZP-021619		670	619	70	30	670 * 70 * 30 – 619	3F-X
ZP-021631		690	631	70	30	690 * 70 * 30 – 631		1iB-X
ZP-021636		700	636	70	30	700 * 70 * 30 – 636						SL400-X

ZP-021650	ZP-020715SS ZP-020715DS ZP-020900SS ZP-020900DS	700	650	70	30	700 * 70 * 30 – 650			W53J-X U53J-X W53FB-X UPV3-X
ZP-021670	ZP-020900SS ZP-020900DS	720	670	70	30	720 * 70 * 30 – 670	440-X					AQ537-X
ZP-021670-35		720	670	70	35	720 * 70 * 35 – 670	440-X					AQ537-X
ZP-021680		730	680	70	30	720 * 70 * 30 – 680		1iE-X C-600iA-X		NA2400-X
P-021680-35		730	680	70	35	730 * 70 * 35 – 680		1iE-X C-600iA-X		NA2400-X
ZP-021700		750	700	70	30	750 * 70 * 30 – 700						AG600-X SL600-X
ZP-021700-35		750	700	70	35	750 * 70 * 35 – 700						AG600-X SL600-X
ZP-021730		780	730	70	30	780 * 70 * 30 – 730	CUT30P-X
ZP-021730-35		780	730	70	35	780 * 70 * 35 – 730	CUT30P-X
ZP-021750-35		800	750	70	35	800 * 70 * 35 – 750			U6-X DUO64-X U6HEAT-X
ZP-021750-40		800	750	70	40	800 * 70 * 40 – 750			U6-X DUO64-X U6HEAT-X
P-021830-35		880	830	70	35	880 * 70 * 35 – 830				FA30V-X	M75A-X
P-021830-40		880	830	70	40	880 * 70 * 40 – 830				FA30V-X	M75A-X
ZP-021910-40	–	960	910	70	40	960 * 70 * 40 – 910			U86-X
ZP-021910-45	–	960	910	70	45	960 * 70 * 45 – 910			U86-X
