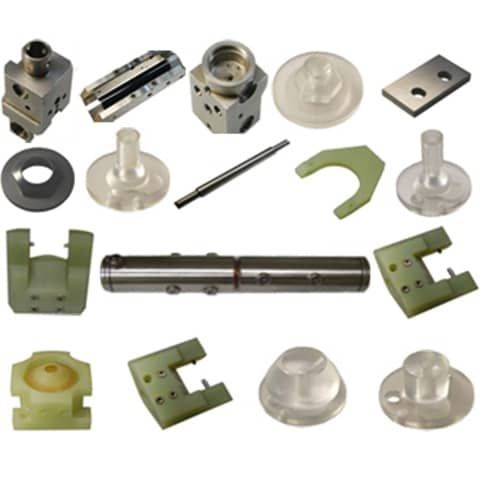

CatalogPhụ kiện khác cho máy cắt dây EDM Agie
| Power Feed Contact | |||||
| Picture | Code No. | Orignal P/No. | Dimension | Position | Application |
 | A021 | 351.594 | Upper | AC100—370HSS series Block housing Ref.174.132.1/351.694 | |
 | A022 | 185.763 | AC50. 250. 315. 400. 425 series AC612. 700. 740 series Complete set with shaft Ref. 185.763.0 | ||
 | A023 | 368.624 | Lower | AC100—370 D/HSS series Block using with 323304.358684.164712.368024 Ref. 368.624.3 | |
 | A025 | 251.563 | Φ30x16H | AC-50. DEM250—740 series Suction tube for taper cutting Ref. 251.563.3 | |
 | A026 | 323.404 | Φ32 L=200~465 | Telescope | AC100—370 D/HSS series Ref. 323.404.4 Pivoting arm assembly |
| A027 | 326.754 | Φ13xΦ5x3H | AC100—370 D/HSS series Cap for bearing Ref. 326.754.9 | ||
 | A028 | 326.614 | 22x10x5T | Lower | AC100—370 D/HSS series Wire cutter Ref. 326.614.5 |
 | A029 | 326.764 | Φ30×9.4H | Lower | AC100—370 D/HSS series Water nozzle rinsing cap Ref. 326.764.8 |
 | A030 | 338.184 | Φ20×16.7H | Lower | AC100—370 D/HSS series Suction tube Ref. 338.184.5 |
 | A031 | 351.544 | Upper | AC100—370 D/HSS series Shaft Ref. 351.544.2 | |
 | A032 | 351.624 | Upper | AC100—370 D/HSS series Ref. 351.624.1 | |
 | A033 | 351.644 | Upper | AC100—370 D/HSS series Horizontal arm Replaced by 414.604.9 | |
 | A034 | 352.904 | 30x30x25.5H | Lower | AC100—370 D/HSS series Casting box / Ref. 352.904.7 |
 | A035 | 377.704 | Lower | Horizontal arm upper ‘B’ Ref. 377.704.2 Replaced by 427.444.5 | |
 | A036 | 396.414 | Φ20xΦ5×21.5 | Lower | AC100—370 D/HSS series Suction tube Ref. 396.414.5 |
 | A037 | 427.444 | Lower | Horizontal arm upper “B” Ref. 427.444.5 | |
 | A038 | Upper | AC100—370 D/HSS series | ||
 | A039S | 362.624 | AC100—370 D/HSS series Complete set with shaft Ref. 351.624.1 | ||
 | A040 | 419.374 | Φ20xΦ15.4×12 | Lower | AC100—370 D/HSS series Suction tube of funnel type Ref. 419.374.4 |
 | A041 | 419.594 | Φ20xΦ9x12H | Lower | AC100—370 D/HSS series Suction tube Ref. 419.594.7 |
