• Homogeneous magnetic field throughout the top plate.
• The power is adjustable from 0% to 100% by positing the handle.
• Top plate is machinable upto 8 mm.
• Detachable handle for easy use.
• Ideal for disc and ring shaped components.
• Powerful and most suitable for components of all sizes for grinding and light turning.
• Made with centre through holes for internal grinding and boring operations

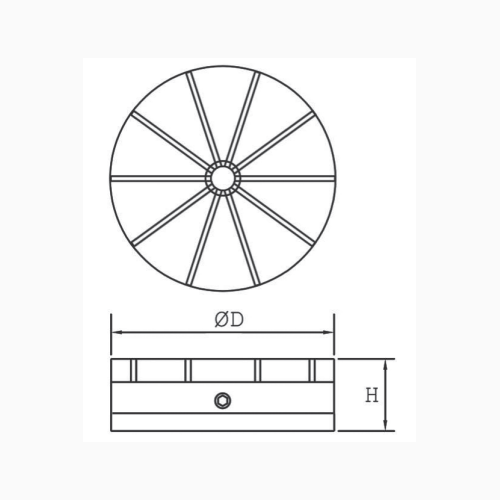

| Model No. | DIA (OD) | No. of Poles | H | |||||
| PR-10 | 100 | 6 | 54 | |||||
| PR-13 | 130 | 8 | ||||||
| PR-16 | 160 | 10 | ||||||
| PR-20 | 200 | 14 | ||||||
| PR-22 | 225 | |||||||
| PR-25 | 250 | |||||||
| PR-30 | 300 | 18 | ||||||
| PR-35 | 350 | 60 | ||||||
| PR-40 | 400 | |||||||
| PR-45 | 450 | 20 | ||||||
| PR-50 | 500 | |||||||
| PR-60 | 600 | 30 | ||||||
