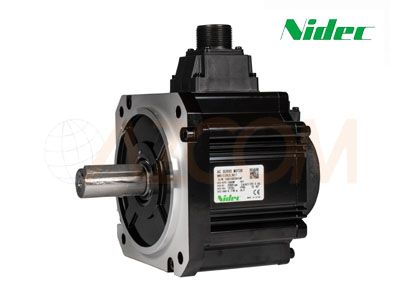

Động cơ servo Nidec 1kW MH102
Thương hiệu: Nidec
MH102 | Motor Model | MH102N2 (Without brake) | |
MH102A2 (With brake) | |||
Thông số kỹ thuật | |||
Item | Unit | Specifications | |
Rotor inertia | – | High | |
Fitting flange size | mm | 130 sq. | |
Approximate mass | Without brake | kg | 7.6 |
With brake | 9 | ||
Compatible amplifier model | – | DB64A1 | |
Voltage | V | AC200–240 V | |
Rated output | W | 1,000 | |
Rated torque | N・m | 4.77 | |
Instantaneous maximum torque | N・m | 14.3 | |
Rated current (stall current) | A | 5.6 | |
Instantaneous maximum current | A | 16.8 | |
Rated revolving speed | r/min | 2,000 | |
Maximum revolving speed | r/min | 3,000 | |
Torque constant | N・m/A | 0.88 | |
Induced voltage constant per phase | mV/(r/min) | 30.9 | |
Rated power rate | Without brake | kW/s | 9.2 |
With brake | 8.6 | ||
Mechanical time | Without brake | ms | 4.17 |
With brake | 4.43 | ||
Electrical time constant | ms | 10.1 | |
Rotor moment of | Without brake | ×10ˉ⁴ kg・m² | 24.9 |
With brake | 26.4 |
