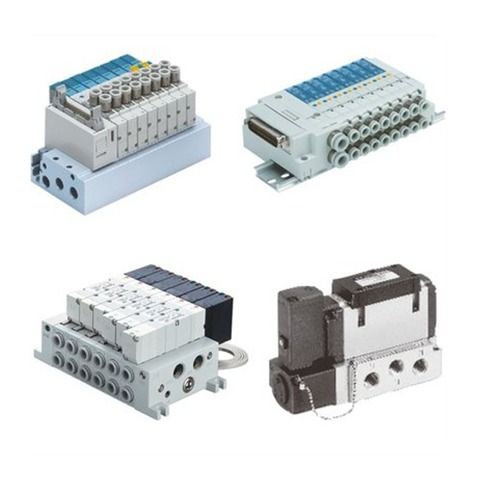

4/5 port solenoid valve SMC

4 Port Solenoid Valve / Manifold Paper Tray Type SJ 2000 / SJ3000

・Low profile cassette type with baseless construction ・ Takes up minimal space with a body width of 7.5 mm (SJ2000) or 10 mm (SJ3000). ・SJ2000 and SJ3000 can be combined. ・ Multi-pin connector makes it easy to add or remove stations or to exchange valves. ・Electromagnetic side ・4 positions, dual 3-port specifications available ・Manifold Type No.: SS5J2, SS5J3

Vacuum release valve with limiter SJ3A6

5 port solenoid valve SY3000 / SY5000

・ Valve width is the same. Traffic increased up to 80%. SY3000: valve width 10 mm, SY5000: valve width 15 mm ・Lifetime: 200 million cycles (Metal seal), 70 million cycles (Rubber seal) ・Plug-in metal base (IP40) / Jack connector base (IP67) ・ Prepared to move the bottom part. Save space ・ Type of paper folding number: SS5Y3, SS5Y5

5-port solenoid valve SY3000 / SY5000 / SY7000 / SY9000

・ A combination of 3-port and 5-port valves can be installed. ・ Power consumption: 0.1 W (with power saving circuit) ・ Wide range of options such as aluminum body manifold, DIN rail, stackable manifold ・ Numeric script type: SS5Y3 SS5Y5 SS5Y7 SS5Y9

5-port solenoid valve SV1000 / SV2000 / SV30000 / SV4000

・The manifold valve stations can be easily added or changed specifications. ・Electromagnetic one side ・ 4 positions, 3 dual port specifications available ・ Numeric script type: SS5V1 SS5V2 SS5V3 SS5V4

4/5 port solenoid valve SYJ3000 / SỴ5000 / SỴ7000

・ A combination of 3-port and 5-port valves can be installed. ・ Power consumption: 0.1 W (with power saving circuit) ・ Numeric script type: SS5YJ3 SS5YJ5 SS5YJ7

5 Port Solenoid Valve / Manifold Paper Tray Type SZ3000

・Case type allows for easy valve exchange. ・ Valve with switch included for safe maintenance. ・Low-profile cassette type with idiopathic structure takes up less space. ・Manifold Type No.: SS5Z3

5-port solenoid valve VF1000 / VF3000 / VF5000

・ Built-in full-wave rectifier (AC) ・Filter integrated in pilot valve ・Manifold Type No.: VV5F1 VV5F3 VV5F5

Large Size 5 Port Solenoid Valve VP4 50 / VP4 50

・To drive the large cylinder. ・Manifold Type No.: VVP45 VVP46

5 port solenoid valve S0700

・Compact solenoid valve manifold 7 mm . width ・4 position, dual 3-port valve ・A variety of common wiring methods ・ Slim compact plug manifold manifold: 45% reduced footprint ∗ 20 mm reduction in height ∗ (∗ Compared to plug manifold stacking base) ・ Type of digital writing: SSO751 SSO750 SSO755

Electric valve from 5 ports VQ1000 / VQ3000

・Space-saving design with solenoid on one side and accessories all positioned on one side, allowing free three-way mounting ・No screw, a clamping structure to reduce recombinant labor ・A wide range of optional parts (Back Pressure Check Valve, Dual Flow Installation, etc.) ・A variety of common wiring methods ・4 position, dual 3-port valve ・Manifold Type No.: VV5Q11 VV5Q21

5 port solenoid valve VQ4000

・Compatible with dustproof/waterproof grades (equivalent to IP65). ・A variety of common wiring methods ・ Compatible with various options and control units. ・Manifold Type No.: VV5Q41 VV5Q45

5 port solenoid valve VQ5000

・Compatible with dustproof/waterproof grades (equivalent to IP65). ・A variety of common wiring methods ・Manifold Type No.: VV5Q51 VV5Q55

VQC . 5-port solenoid valve

・ IP67 compliant enclosure ・ Flexible adaptability such as additional stations and changing specifications is possible with the use of multi-pin connector manifolds. ・Space-saving design with solenoid on one side and accessories all positioned on one side, allowing free mounting ・No screw, a clamping structure to reduce recombinant labor ・A variety of common wiring methods ・4 position, dual 3-port valve ・Manifold Type No.: VV5QC11 VV5QC21

VQC . 5-port solenoid valve

・ IP67 compliant enclosure ・ Flexible adaptability such as additional stations and changing specifications is realized with the use of multi-pin connector manifolds. ・Space-saving design with solenoid on one side and accessories all positioned on one side, allowing free mounting ・A variety of common wiring methods ・Manifold Type No.: VV5QC41

VQZ . 5-port solenoid valve

・ A combination of 3-port and 5-port valves can be installed on the manifold valve. ・ Allows mounting on aluminum body manifold or DIN rail. ・ Numeric script type: VV5QZ12 ， VV5QZ15 ， VV5QZ22 VV5QZ25 VV5QZ32 ， VV5QZ35

SQ . 5-port solenoid valve

・Power Saving: 0.4 W (Standard) ・ Easily add or reduce the number of valve stations. ・ Valve maintenance is easy. Can be mounted with a screw. ・Easy to replace clamp type One-touch Accessory ・ The input direction of the connector can be changed with a single press. ・Dual 4-position 3-port valve ・Built-in back pressure check valve (Optional) ・ Type of numeric writing: SS5Q13 SS5Q14 SS5Q23 SS5Q24

VFS . 5-port solenoid valve

・Main valve structure with metal seal ・Variety of size variations ・For driving medium and large cylinders ・Variety of choices ・ Compatible with control devices (VFS2000 / 3000/4000, base mount type) ・ Manifold Type No.: VV5FS1 VV5FS2 VV5FS3 VV5FS4 VV5FS5

VFR . 5-port solenoid valve

・Main valve construction with rubber seal ・Variety of size variations ・For driving medium and large cylinders ・Manifold Type No.: VV5FR2 VV5FR3 VV5FR4 VV5FR5

NAMUR interface 5-port solenoid valve VFN2000N

・ Compact design and large flow ·Less power consumption ・ NAMUR mount interface ・ Multiple electrical input options (Grommet, Terminal, DIN terminal type)

5 Port Solenoid Valve / ISO Standard VQ

・ Compliant with ISO standards ・Manifold Type No.: VV71 VV72

Intrinsically Safe Explosion-proof System 5 Port Solenoid Valve 51-SY

・Exia II BT4 (TIIS Certified Product) ・ Three types of connectors can be selected. L-shaped plug connector, L-shaped plug connector with cap, terminal block type ・ Four types of barriers can be selected. ・Manifold Type No.: 51-SS5Y5，51-SS5Y7
