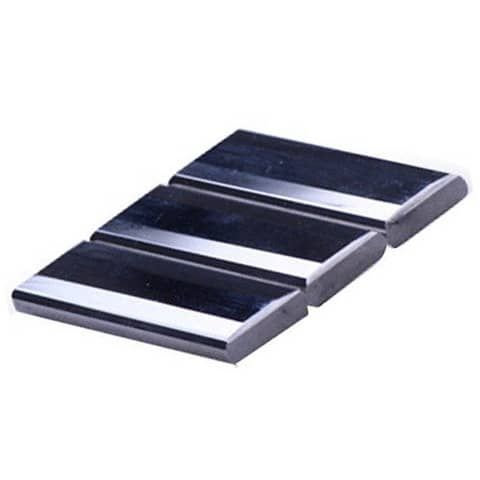

대학 요록EDM线切割机用导电板 SODICK
| 其他配件 | |||||
| 图像 | 产品代码 | Orignal P/No. | 尺寸 | 位置 | 应用 |
 | S001 | 3080316 | Φ18X10 | 더 높은 | AP150. AW. BF. EPOC~W series Guide unit 83 / AWT type |
 | S002 | 3080314 | Φ18X14 | 낮추다 | AP150. AW. BF. EPOC~W series Guide unit 83.84 / AWT type |
 | S003S | 3080318 | 16X10 | 더 높은 | EPOC~W. G. GW. GOW series Guide unit 84 / AWT type Material : Silver tungsten |
 | S003T | 3080318 | 16X10 | 더 높은 | EPOC~W. G. GW. GOW series Guide unit 84 / AWT type Material : Cermet |
 | S004S | 3080324 | 14X11X12 | 더 높은 | AW. AP150. BF. EPOC series Guide unit 85-3 / AWT type Material : Silver tungsten |
 | S005LS | 3080307 | 12.5X14X11.7 | 더 높은 | AW. AP150. BF. EPOC series Guide unit 85-2.3 / Manual type Material : Silver tungsten |
 | S005RS | 3080308 | 12.5X14X11.7 | 더 높은 | AW. AP150. BF. EPOC series Guide unit 85-2.3 / Manual type Material : Silver tungsten |
 | S005LT | 3080307 | 12.5X14X11.7 | 더 높은 | AW. AP150. BF. EPOC series Guide unit 85-2.3 / Manual type Material : Cermet |
 | S005RT | 3080308 | 12.5X14X11.7 | 더 높은 | AW. AP150. BF. EPOC series Guide unit 85-2.3 / Manual type Material : Cermet |
 | S006S | 3080311 | 12.5X19X11.6 | 낮추다 | AW. BF. EPOC~W. GO. GW series Guide unit 85-2.3 type Material : Silver tungsten |
 | S008S | 3080320 | Φ12X20.6 | Normally | AP150 series Guide unit KM-3 type Material : Silver tungsten |
 | S009S | 3080301 | Φ10X8X30 | Normally | A. AP. AQ. AW. EPOC series Guide unit 86-1 type Material : Silver tungsten |
 | S010 | 3085936 3080972 3084592 | 4.8X40X20 | Normally | A. AP. AQ. AW. EPOC series Guide unit 87-3 type |
 | S010G | 3085936 3080972 3084592 | 4.8X40X20 | Normally | A. AP. AQ. AW. EPOC series Guide unit 87-3 type TiN coated – Gold color |
 | S010L | 3085936 3080972 3084592 | 4.8X40X20 | Normally | A. AP. AQ. AW. EPOC series Guide unit 87-3 type TiAIN coated – Grey color |
