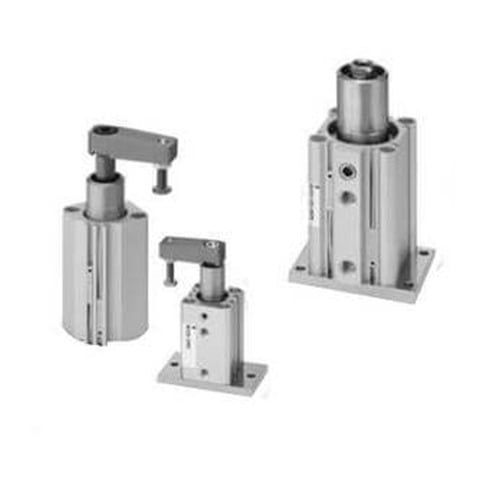

| Diameter (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |||
| Operation form | Two effects | ||||||||||
| Swivel angle | 90o±10o | ||||||||||
| Rotation direction | Clockwise, counter-clockwise | ||||||||||
| Rotation stroke (mm) | 7.5 | 9.5 | 15 | 19 | |||||||
| Clamping stroke (mm) | 10, 20, 30 | 10, 20, 30, 50 | |||||||||
| Theoretical clamping force (N) | 40 | 75 | 100 | 185 | 300 | 525 | 825 | 1400 | |||
| Fluids | Gas | ||||||||||
| Destruction pressure | 1.5 MPa | ||||||||||
| Operating pressure | 0.1 to 1 MPa | 0.1 to 0.6 MPa | |||||||||
| Fluid temperature and environment | Without sensor: -10 to 70oC (no freezing) With sensor: -10 to 60oC (no freezing) | ||||||||||
| Oil Filter | No | ||||||||||
| Port size pipe | M5 × 0.8 | Rc1/8, NPT 1/8 G1/8 | Rc1/4, NPT 1/4 G1/4 | ||||||||
| Mounting bracket | Transparent Hole, Flange | ||||||||||
| Damping | Rubber | ||||||||||
| Cruise tolerance | +0.6 -0.4 | ||||||||||
Piston speed | 50 to 200 mm/s | ||||||||||
| Rotation Tolerance | ±1.4o | ±1.2o | ±0.9o | ±0.7o | |||||||
| Diameter (mm) | Shaft Size (mm) | Direction | Piston area (cm2) | Operating pressure (MPa) | |||
0.3 | 0.5 | 0.7 | 1.0 | ||||
12 | 6 | Vào | 0.8 | 25 | 42 | 59 | 85 |
Ra | 1.1 | 34 | 57 | 79 | 113 | ||
16 | 8 | Vào | 1.5 | 45 | 75 | 106 | 151 |
Ra | 2.0 | 60 | 101 | 141 | 201 | ||
20 | 12 | Vào | 2.0 | 60 | 101 | 141 | 201 |
Ra | 3.1 | 94 | 157 | 220 | 314 | ||
25 | 12 | Vào | 3.8 | 113 | 189 | 264 | 378 |
Ra | 4.9 | 147 | 245 | 344 | 491 | ||
32 | 16 | Vào | 6.0 | 181 | 302 | 422 | 603 |
Ra | 8.0 | 241 | 402 | 563 | 804 | ||
40 | 16 | Vào | 10.6 | 317 | 528 | 739 | 1056 |
Ra | 12.6 | 377 | 628 | 880 | 1257 | ||
50 | 20 | Vào | 16.5 | 495 | 825 | 1155 | 1649 |
Ra | 19.6 | 589 | 982 | 1374 | 1963 | ||
63 | 20 | Vào | 28.0 | 841 | 1402 | – | – |
Ra | 31.2 | 935 | 1559 | – | – | ||
Options/ Arms
| Diameter (mm) | PLU | Accessory |
12 | MK-A012Z | Hexagon screws, installation accessories |
16 | MK-A016Z | |
20 | MK-A020Z | |
25 | ||
32 | MK-A032Z | |
40 | ||
50 | MK-A050Z |
Gá đỡ
Đường kính (mm) | Mã hàng | Phụ kiện |
12 | CQS-F012 | Ổ cắm lục giác đinh vít |
16 | CQS-F016 | |
20 | CQS-F020 | |
25 | CQS-F025 | |
32 | CQS-F032 | |
40 | CQS-F040 | |
50 | CQS-F050 | |
63 | CQS-F063 |
Cylinder weight (g)
| Clamping stroke (mm) | Diameter (mm) | |||||||
| 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| 10 | 69 | 94 | 222 | 282 | 445 | 517 | 921 | 1256 |
| 20 | 84 | 113 | 250 | 319 | 494 | 570 | 1001 | 1364 |
| 30 | 99 | 132 | 279 | 355 | 542 | 623 | 1081 | 1472 |
| 50 | – | – | – | – | 639 | 728 | 1241 | 1687 |
