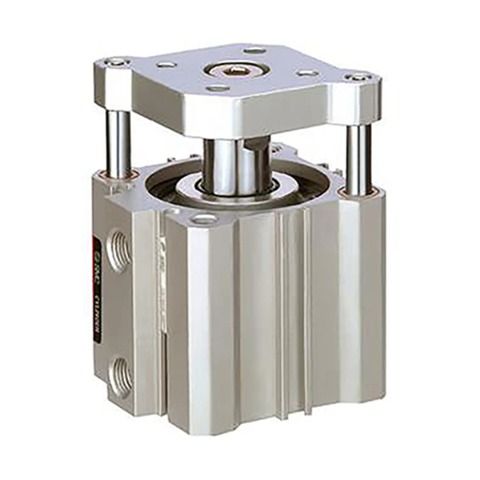

SMC CQ2 CDQ2

供应商: SMC Kr
|
대학 요록

气缸体设计紧凑，节省空间
・ 小型自动开关可安装在4个表面上。 （ø12 至 ø25 为 2 个表面）
・没有自动开关的突起
・重量：减轻 5% 至 13%（与现有 CQ2 系列相比）
・新增紧凑型脚架和双槽轴架
・提供带有端架杆和/或安装螺栓的零件号。
（无需单独订购适用气缸的支架。）

订单查询: 0968.40.3138
수량
문의하기

cq2

압축 공기 유형

Barrel size (mm)

12

16

20

25

32

40

50

63

80

100

ImpactTwo effects, one shaft
Fluids

Gas

Destruction pressure

1.5 MPa

Maximum operating pressure

1.0 MPa

Minimum operating pressure

0.07 MPa

0.05 MPa

Permissible fluid and ambient temperature

Without sensor: -10 to 70oC (no freezing)

With sensor: -10 to 60oC (no freezing)

LubricantNo need to oil (Non-lube)
Piston speed50 to 500 mm/s
Allowable kinetic energy (J)Standard

0.022

0.038

0.055

0.09

0.15

0.26

0.46

0.77

1.36

2.27

There is a rubber cushion inside

0.043

0.075

0.11

0.18

0.29

0.52

0.91

1.54

2.71

4.54

Cruise tolerance

+1.0 mm

유압 유형

Barrel size (mm)

20

25

32

40

50

63

80

100

ImpactTwo effects, one shaft
FluidsHydraulic oil
Destruction pressure

1.5 MPa

Maximum operating pressure

1.0 MPa

Minimum operating pressure

0.18 MPa

0.1 MPa

Fluid temperature and environment

5 to 60oC

Piston speed

5 to 50 mm/s

DampingNo
Cruise tolerance

+1.0 mm

0

*For all information about the oil used for this cylinder, please contact

Standard itinerary

Compressed air type

Barrel sizeJourneys
12, 165,10, 15, 20, 25, 30
20, 255,10, 15, 20, 25, 30, 35, 40, 45, 50
32, 405,10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100
50 to 10010, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

Type Air Hydro

Barrel sizeJourneys

20, 25

5,10, 15, 20, 25, 30, 40, 45, 50

32, 40

5,10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

50, 63, 80, 100

10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100
