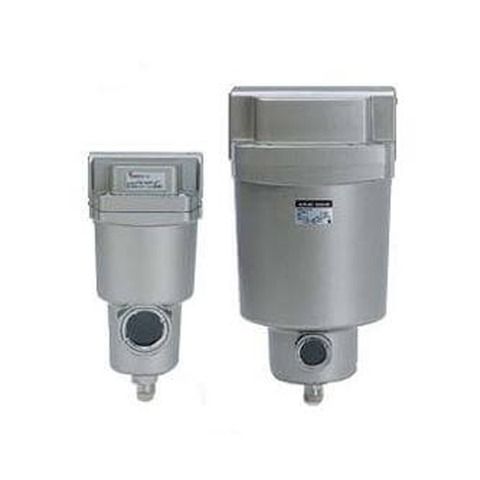

节省安装空间的AM+AMD组合过滤器(过滤能力:0.01μm)
MODEL | Maximum flow rate L/min (ANR) at inlet pressure 0.7 Mpa | Port size | Note | |
AMH | 150C | 200 | 1/8, 1/4 | Type with support tube Optional automatic exhaust NO, NC Has a time indicator or filter element |
250C | 500 | 1/4, 3/8 | ||
350C | 1,000 | 3/8, 1/2 | ||
450C | 2,000 | 1/2, 3/4 | ||
550C | 3,700 | 3/4, 1 | ||
650 | 6,000 | 1, 1 1/2 | ||
850 | 12,000 | 1 1/2, 2 |
