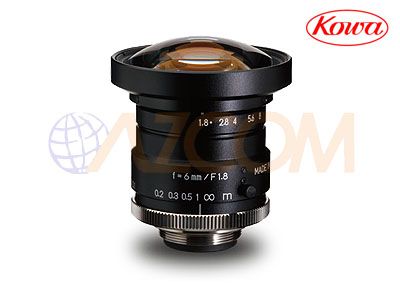

Ống kính 1″ Megapixel Kowa Series HC
| Model | Format Size (Inch) | Focal Length (mm) | Iris Range (F-stop) | Focusing Range(m) | Mount | Field Angle (H×V) | Size (mm) |
|---|
| 4/3 | 1 | 2/3 | 1/1.8 | 1/2 | 1/3 |
|---|
| LM6HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 6 | F1.8〜F16 | 0.1〜∞ | C | 96.8×79.4 | Φ54×56.2 |
| LM8HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 8 | F1.4〜F16 | 0.1〜∞ | C | 79.4×63.0 | Φ57×58 |
| LM12HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 12.5 | F1.4〜F16 | 0.3〜∞ | C | 55.6×42.5 | Φ43×51.5 |
| LM16HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 16 | F1.4〜F16 | 0.3〜∞ | C | 44.3×33.6 | Φ43×52.9 |
| LM25HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 25 | F1.4〜F16 | 0.3〜∞ | C | 29.3×22.0 | Φ43×43 |
| LM35HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 35 | F1.4〜F16 | 0.3〜∞ | C | 20.9×15.8 | Φ43×43 |
| LM50HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 50 | F1.4〜F16 | 0.5〜∞ | C | 14.5×10.8 | Φ49×48 |
| LM75HC | | ✓ | ✓ | ✓ | ✓ | ✓ | 75 | F1.8〜F16 | 1.0〜∞ | C | 9.7×7.3 | Φ49×57 |
