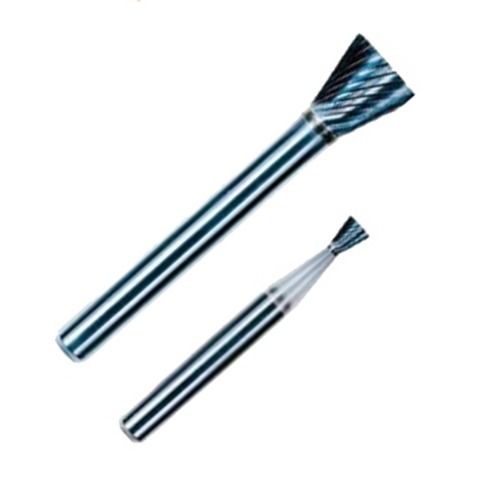

대학 요록SN Miracle 倒锥合金磨头
- 推荐材料：铝、Brana、铜、碳、玻璃纤维、硬橡胶、塑料、不锈钢
- 专为更高质量的生产而设计，减少材料的去除
- 推荐用于较软、有色和非金属材料和材料上的快速货物移除
详细技术规格：
| MODEL | Cutting Dia | Shank Dia | Length of Cut | Overall Length | Angle |
| d1 mm | d2 mm | l2 mm | l1 mm | a | |
| SN-41M | 2.5 | 3 | 3 | 38 | 10X |
| SN-42M | 3 | 3 | 4 | 38 | 10X |
| SN-51M | 6.3 | 3 | 6 | 44 | 10X |
| SN-53M | 5 | 3 | 6.3 | 38 | 10X |
| SN-1M | 6 | 6 | 8 | 50 | 10X |
| SN-2M | 9.5 | 6 | 9.5 | 53 | 13X |
| SN-4M | 12.7 | 6 | 12.7 | 57 | 28X |
| SN-6M | 16 | 6 | 19 | 63 | 18X |
| SN-7M | 19 | 6 | 16 | 60 | 30X |
