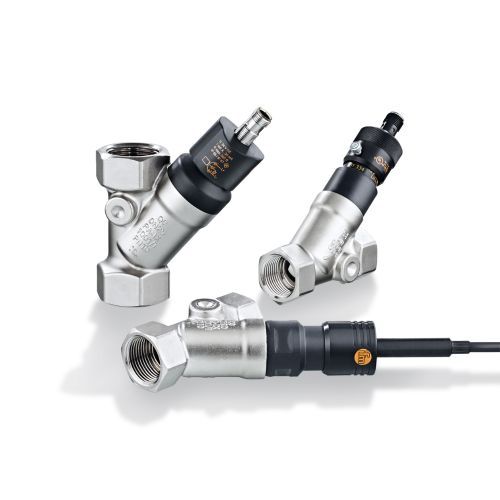

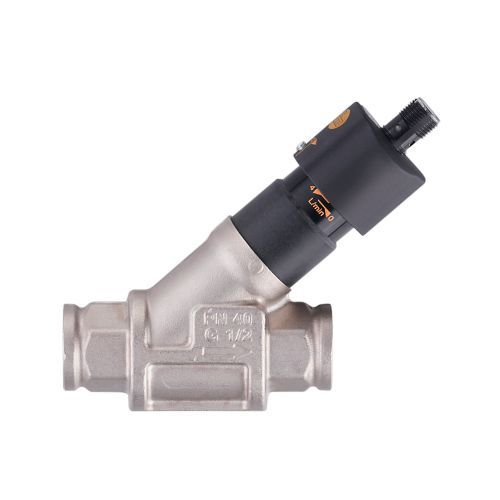

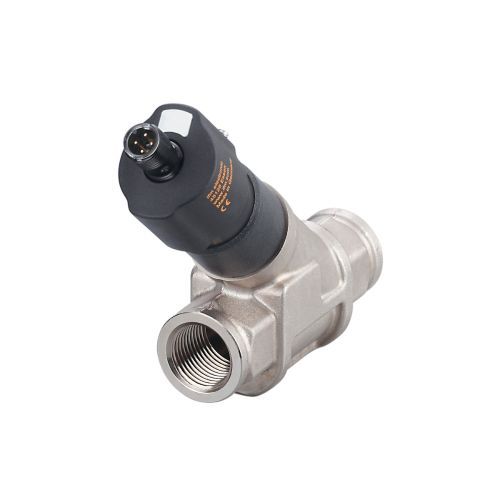

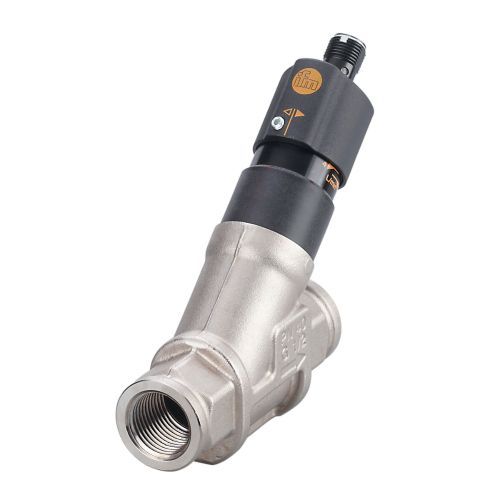

대학 요록SBY 系列机电一体化流量传感器可监测液体介质，例如水、乙二醇溶液、工业油或冷却剂。
该传感器的工作原理是弹簧辅助活塞。 活塞位于壳体的阀座中，由流动的流体克服弹簧的阻力而升起。 活塞的位置决定流量。 弹簧阻力使活塞返回到其原始位置，减少流量并防止回流。
坚固的机械设计使这些传感器能够在高压和恶劣的工业环境中使用。 该产品线包括带模拟输出的交通发射机和带开关输出的交通监视器。 流量监测器开关点可以通过定位螺钉进行设置和固定。
根据检测到的体积流量，设备可配备不同的过程连接。
| Product Code | Measuring range | Material (wet part) | Electrical design | Connection process |
| SBG232 | 0.3…15 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | G 1/2 | |
| 0.018…0.9 m³/h | ||||
| SBG233 | 0.5…25 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | G 1/2 | |
| 0.03…1.5 m³/h | ||||
| SBY246 | 2…100 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | Rp 1 internal thread | |
| 0.12…6 m³/h | ||||
| SBG257 | 4…200 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; PP-GF30; O-ring: FKM | G 1 1/4 | |
| 0.24…12 m³/h | ||||
| SBG246 | 2…100 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | G 3/4 | |
| 0.12…6 m³/h | ||||
| SBG234 | 1…50 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | G 1/2 | |
| 0.06…3 m³/h | ||||
| SBY257 | 4…200 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; PP-GF30; O-ring: FKM | Rp 1 1/2 internal thread | |
| 0.24…12 m³/h | ||||
| SBY234 | 1…50 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | Rp 3/4 internal thread | |
| 0.06…3 m³/h | ||||
| SBY232 | 0.3…15 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | Rp 3/4 internal thread | |
| 0.018…0.9 m³/h | ||||
| SBY233 | 0.5…25 l/min | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | Rp 3/4 internal thread | |
| 0.03…1.5 m³/h | ||||
| SBN246 | 30…1620 gph | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | 1 NPT | |
| SBN257 | 60…3000 gph | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | 1 1/2 NPT | |
| 1…50 gpm | ||||
| SBN234 | 10…600 gph | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | 3/4 NPT | |
| 0.2…10 gpm | ||||
| SBN232 | 5…240 gph | stainless steel (1.4401 / 316); stainless steel (1.4404/316L); brass (2.0371); chemical nickel-plated brass; PPS; O-ring: FKM | 3/4 NPT |
