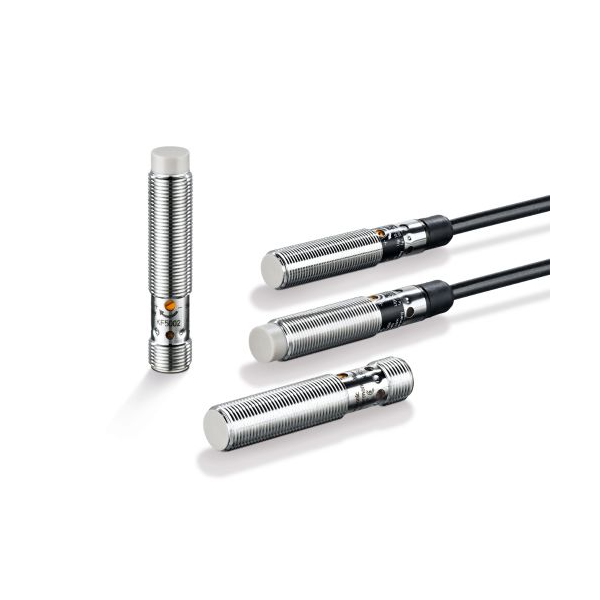

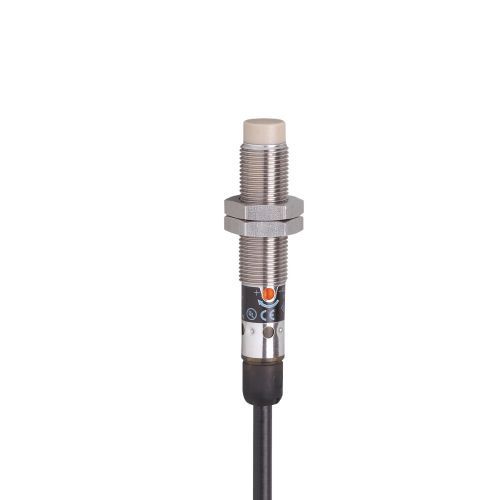

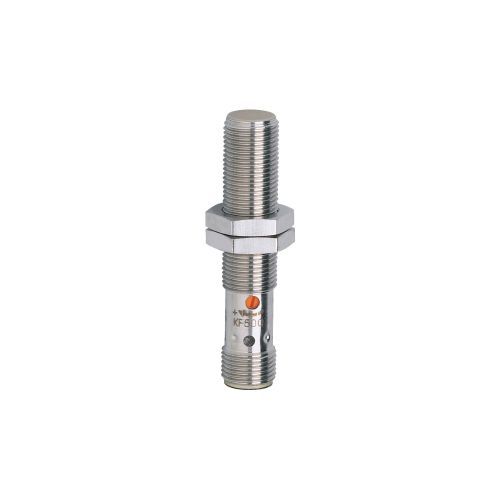

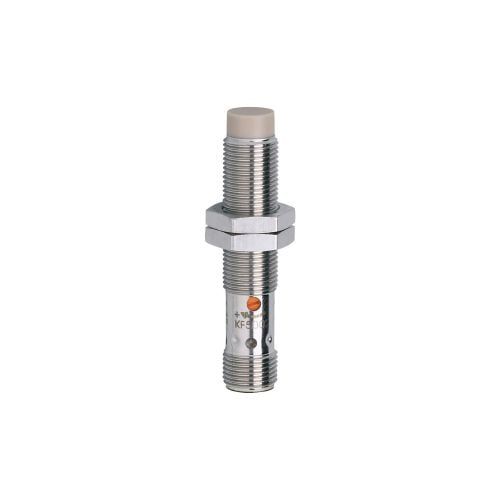

M12 设计中的电容式传感器无需接触即可检测金属和非金属物体。 通过使用电位计调整感应范围,它们可以轻松适应相应的应用。 典型应用是造纸、木材和玻璃行业。 例如,在包装系统中,传感器将检查盒子是否存在或监控其完整内容。 使用标准 M12 连接器,传感器可以轻松连接到控制器。
Product Code | Sensor range | Output function | Output | Size | Connection |
KF5001 | 1…6 mm flush mountable | usually open | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
KF5002 | 3…12 mm non-flush mountable | usually open | DC PNP | M12 x 1 / L = 61 mm | M12 Connector |
KF5013 | 1…6 mm flush mountable | usually open | DC NPN | M12 x 1 / L = 60 mm | M12 Connector |
KF5015 | 8 mm non-flush mountable | usually open | DC PNP | M12 x 1 / L = 70 mm | 2 m PUR-Cable |
KF5014 | 4 mm flush mountable | usually open | DC PNP | M12 x 1 / L = 69 mm | 2 m PUR-Cable |
