IFM 电容式传感器（长传感器范围）

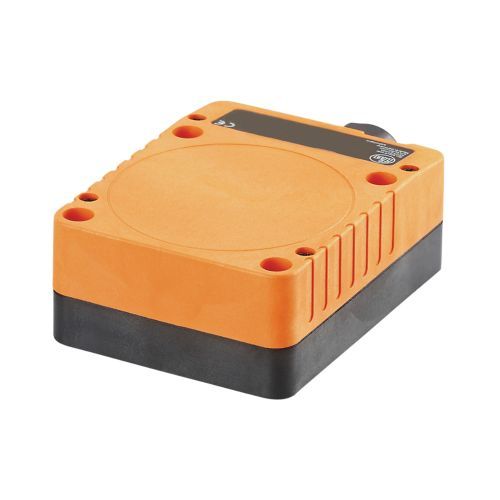

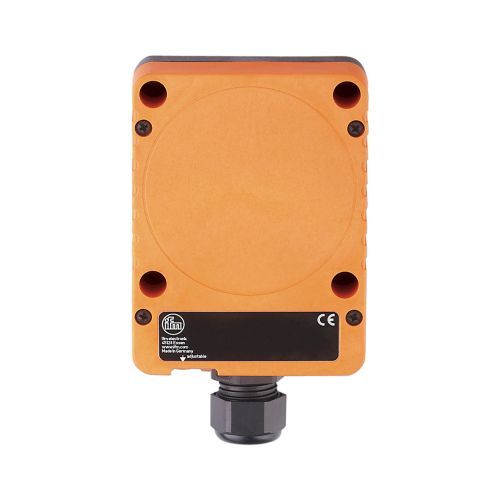

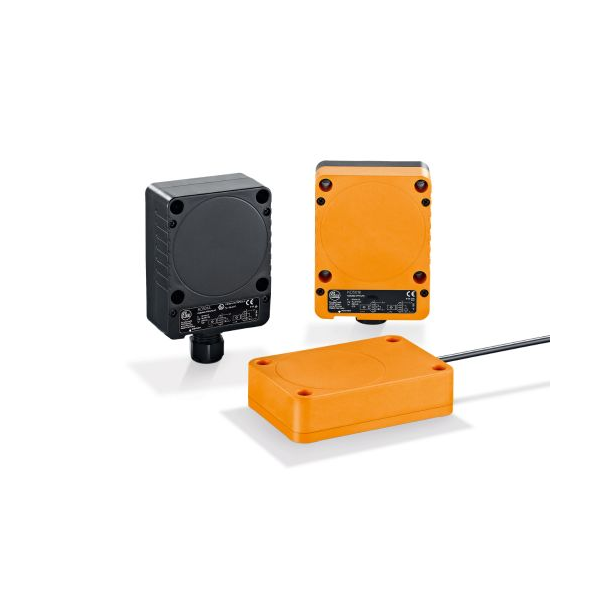

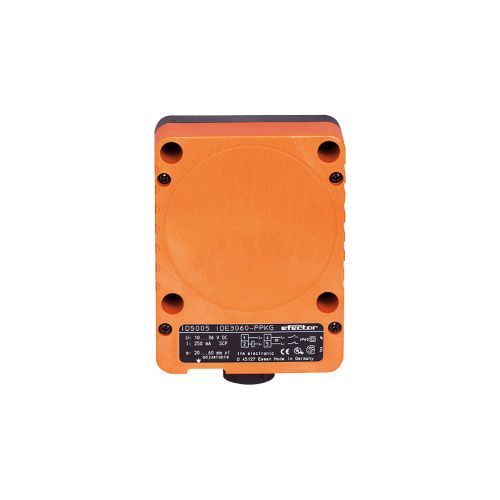

电容式传感器的可调感应范围高达 60 mm，可实现最大的安装灵活性，同时具有高剩余增益。 带塑料盖的矩形型特别适合监控斗式提升机。
抗干扰电子器件可防止传感器的错误切换（例如由于变频器引起的干扰）。
传感器配有连接室、连接电缆或 M12 连接器。

Product Code	Sensor range	Output function	Output	Size	Connection
KD5018	60 mm non-flush mountable	normally open / bonus close; (selectable)	DC PNP	105 x 80 x 40 mm	terminals: …2,5 mm²;
KD501A	60 mm non-flush mountable	normally open / bonus close; (selectable)	DC PNP	105 x 80 x 42 mm	terminals: 0,34…2,5 mm²;
KD0009	60 mm non-flush mountable	normally open / bonus close; (selectable)	AC/DC	105 x 80 x 40 mm	terminals: …2,5 mm²;
KD001A	60 mm non-flush mountable	normally open / bonus close; (selectable)	AC/DC	105 x 80 x 42 mm	terminals: 0,34…2,5 mm²;
KD5044	60 mm non-flush mountable	normally open	DC PNP	105 x 80 x 40 mm	M12 Connector
KD5039	60 mm non-flush mountable	normally open / bonus close; (selectable)	DC PNP	105 x 80 x 40 mm	M12 Connector
KD5022	60 mm non-flush mountable	normally open	DC PNP	120 x 80 x 30 mm	2 m PVC-Cable
KD0012	60 mm non-flush mountable	normally open	AC/DC	120 x 80 x 30 mm	2 m PVC-Cable
KD5019	60 mm non-flush mountable	normally open / bonus close; (selectable)	DC NPN	105 x 80 x 40 mm	terminals: …2,5 mm²;
KD0024	60 mm non-flush mountable	normally open / bonus close; (selectable)	AC/DC		terminals: …2,5 mm²;
