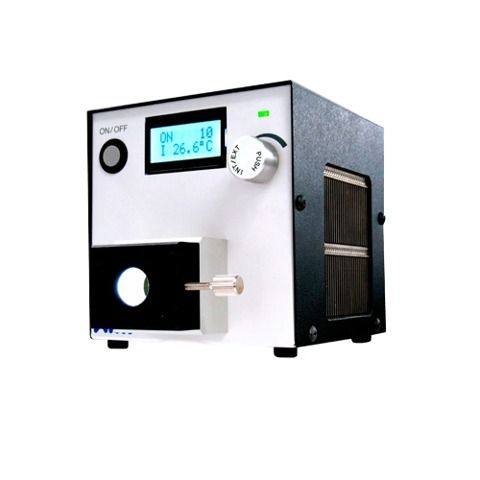

대학 요록Specifications:
| Sample | LLBKI-BA-DxD[1] LLBKI-SA-DxD* Ï |
| Recommended bundle diameter | B: 08 ~ 14mm S: Below 08mm |
| Outer Dimensions WxDxHtmm | 110X112X110 |
| Lighting systems | Continuous current control |
| Output Quantity | 1ch |
| Input power | 24 VDC (M3 terminal block / 100 VAC to 240 VAC AC adapter) |
| Power Consumption Type. 140 W (white) | |
| Light control value 1,000 gradient | |
| LED lamp life | Min. 40,000 hours * 1 |
| Cooling system | Cooling fan Side intake and rear exhaust (one rear fan) |
| LED Emission Color | White, red, green, blue and UV |
| External M3 terminal block ON / OFF (2 pins) / LAN connector | |
| LAN connector for external lighting control | |
| Mass | About 1.4 kg (main body) |
| Environmental Control RoHS Compliant | |
