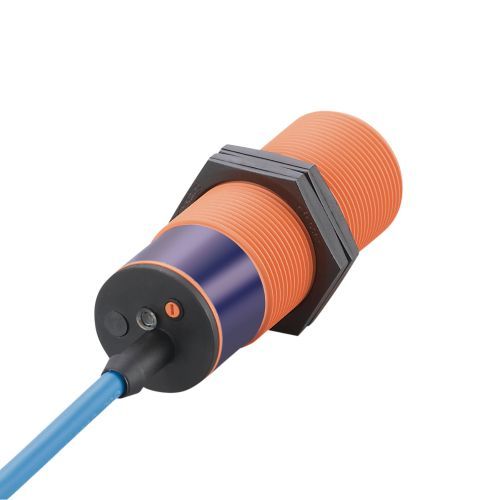

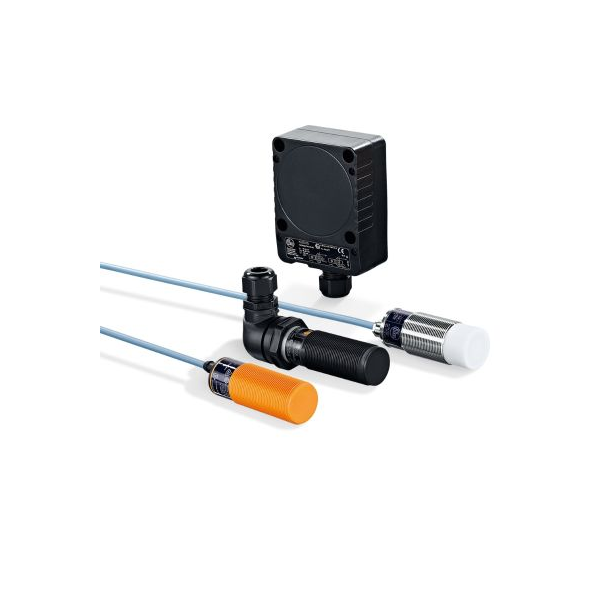

IFM电容式传感器（用于爆炸性环境）

用于危险粉尘区域的 3G/3D 类型传感器必须能够满足严苛的要求。 传感器带来的任何风险都必须通过特殊的测试方法来消除。 精选的材料和特殊的传感器设计确保即使在长期使用期间也能保证抑制火源。 这显着提高了作物安全性。
1G/1D 型 Namur 传感器可连接到本质安全电路。 通过 ENC ecolink 系列连接器连接到必要的 ifm 开关放大器。

Product Code	Sensor range	Output function	Output	Size	Connection
KI505A	15 mm non-flush mountable	additional	DC PNP	M30 x 1.5 / L = 125 mm	terminals: 0,34…1,5 mm²;
					Cable sheath: Ø 5…9 mm
KI503A	15 mm non-flush mountable	additional	DC PNP	M30 x 1.5 / L = 150 mm	terminals: 0,34…1,5 mm²;
					Cable sheath: Ø 5…9 mm
KI000A	15 mm non-flush mountable	normally open / normally closed; (selectable)	AC/DC	M30 x 1.5 / L = 150 mm	terminals: 0,34…2,5 mm²;
KI5031	15 mm non-flush mountable	normally closed	DC NAMUR	M30 x 1.5 / L = 81 mm	6 m PVC-Cable
KI5030	15 mm non-flush mountable	normally closed	DC NAMUR	M30 x 1.5 / L = 81 mm	2 m PVC-Cable
KI001A	15 mm non-flush mountable	normally open / normally closed; (selectable)	AC/DC	M30 x 1.5 / L = 125 mm	terminals: 0,34…2,5 mm²;

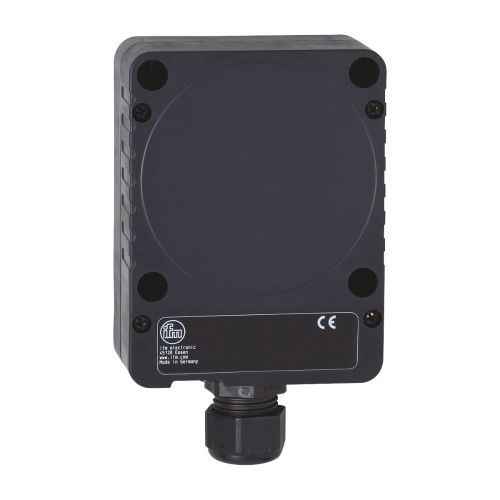

KD501A	60 mm non-flush mountable	normally open / normally closed; (selectable)	DC PNP	105 x 80 x 42 mm	terminals: 0,34…2,5 mm²;
KD001A	60 mm non-flush mountable	normally open / normally closed; (selectable)	AC/DC	105 x 80 x 42 mm	terminals: 0,34…2,5 mm²;
KX5001	15 mm non-flush mountable	normally closed	DC NAMUR	M34 x 1.5 / L = 92 mm	2 m PVC-Cable
KX5002	15 mm non-flush mountable	normally closed	DC NAMUR	M34 x 1.5 / L = 92 mm	6 m PVC-Cable
KG5079	8 mm non-flush mountable	normally closed	DC	M18 x 1 / L = 84 mm	6 m PVC-Cable
KX5004	15 mm non-flush mountable	normally closed	DC NAMUR	M34 x 1.5 / L = 92 mm	20 m PVC-Cable
