대학 요록概述

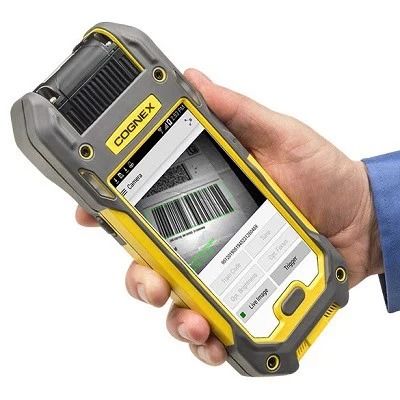

条码阅读器能够与智能手机完美连接，提供便利并能够顺利轻松地工作。 工作距离为 15cm 至 10m，可以读取高架、地板和天花板上的代码...

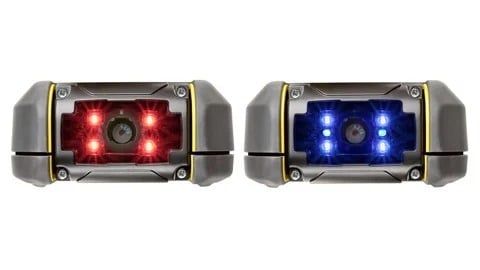

配备附加照明模块，提高读码效率。 模块化设计可以轻松拆卸智能手机并将其插入设备中。 可以安装符合人体工程学的手柄，当握在手柄中时，手机的正面将面向用户的视线水平，以便极其轻松地查看信息。
该设备采用康耐视的先进算法，能够读取一维、二维码，甚至是 DPM 直接激光雕刻码等困难代码。 该设备支持客户智能手机上可用的 3G、4G LTE、Wifi、蓝牙连接。
| Standard and extended range | Range | |
| Size | 221.0 mm x 99.0 mm x 43.1 mm | 208.6 mm x 88.9 mm x 42.1 mm |
| Weight | 510 g (675 g with pistol grip) | |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) * | |
| Storage temperatures | -40 °C to 60 °C (-40 °F to 140 °F) * | |
| Storage temperatures | 95% (no condensation) | |
| Material | Polycarbonate case with too much | |
| Imager | 1.2MP . global shutter sensor | |
| Aiming | Green LED | |
| Status output | LED light, beep and vibrate | |
| Communicate | Scan engine communicates with mobile device via USB port Mobile device communicates via Wi-Fi, Bluetooth, Cellular and others based on model | |
| Support device | Samsung® Galaxy® S4, S5, S6 and S7, Apple® iPhone® SE, 5/5S, 6/6S, 7 and iPod® 5th and 6th Generation | |
| Symbol | 1-D: UPC / EAN / JAN, Codabar, Interleaved 2/5, Code 39, Code 128, Code 93, Pharmacode, GS1 DataBar, PDF417, Micro PDF417 | |
| 2-D: Data Matrix, QR Code and MicroQR Code, DotCode and Postal Code | ||
| Lighting | Built-in LED lighting | |
| Base station power supply requirements | Maximum power supply 24 V, 13 W LPS or NEC Class 2 | |
| Battery (Brick Style) | 3.7 V, 3070 mAh Li-Polymer | |
| Battery (Pistol Grip) | 3.7 V, 3100 mAh Li-Ion | |
| Environmental | Complies with RoHS directive 2011/65/EU | |
| Electricity regulation | CB Diagram: IEC 60950-1, FCC 47 CFR Part 15 Subpart B, ICES-003, CE, KCC | |
| EMI/RFI | ||
| Data validation | US DoD UID Guidelines, GS-1, ISO15434 and ISO15418 | |
| Activated | Left and right hand buttons, pistol grip or touchscreen software | |
