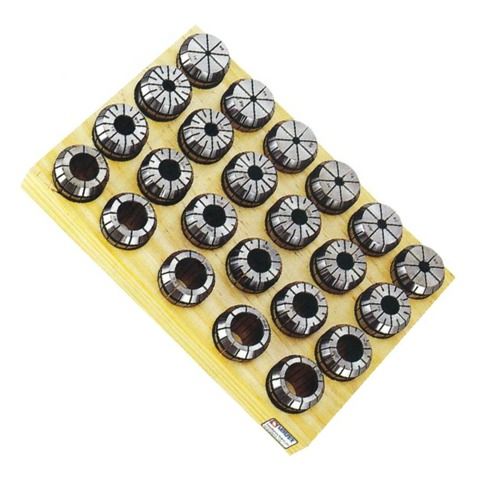

夹具组顶点

Model

Code No.

(Φmm)

(kg)

V-08000

ER-8

1+0.5~5mm(1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5mm)

9

0.8

3001-101

V-11000

ER-11

1~7mm(1, 2, 3, 4, 5, 6, 7mm)

7

0.3

3002-101

V-11013

1+0.5~7mm(1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm)

13

0.3

3002-102

V-16000

ER-16

1~10mm(1, 2, 3, 4, 5, 6, 7, 8, 9, 10mm)

10

0.7

3003-101

V-16008

3~10mm(3, 4, 5, 6, 7, 8, 9, 10mm)

8

0.6

3003-102

V-20000

ER-20

2~13mm(2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm)

12

0.9

3004-101

V-20008

4~13mm(4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm)

10

0.8

3004-102

V-25000

ER-25

2~16mm(2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16mm)

15

1.3

3005-101

V-25008

4~16mm(4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16mm)

13

1

3005-102

V-25009

6, 8, 10, 12, 16mm

5

0.4

3005-103

V-25010

4, 6, 8, 10, 12, 14, 16mm

7

0.35

3005-104

V-32000

ER-32

3~20mm(3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20mm)

18

3.3

3006-101

V-32008

4, 5, 6, 8, 10, 12, 13, 15, 16, 18, 20mm

11

2.8

3006-102

V-32009

6, 8, 10, 12, 16, 20mm

6

0.9

3006-103

V-40000

ER-40

4~20mm(3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26mm)

23

6.5

3007-101

V-40008

4, 5, 6, 8, 10, 12, 13, 15, 16, 18, 20, 21, 22, 25, 26mm

15

4.2

3007-102

V-40009

6, 8, 10, 12, 16, 20, 25mm

7

2

3007-103

V-50000

ER-50

12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34mm

12

6.5

3008-101
